Threaded Screw Support 25.4 mm #6-32 Female Thread Fix

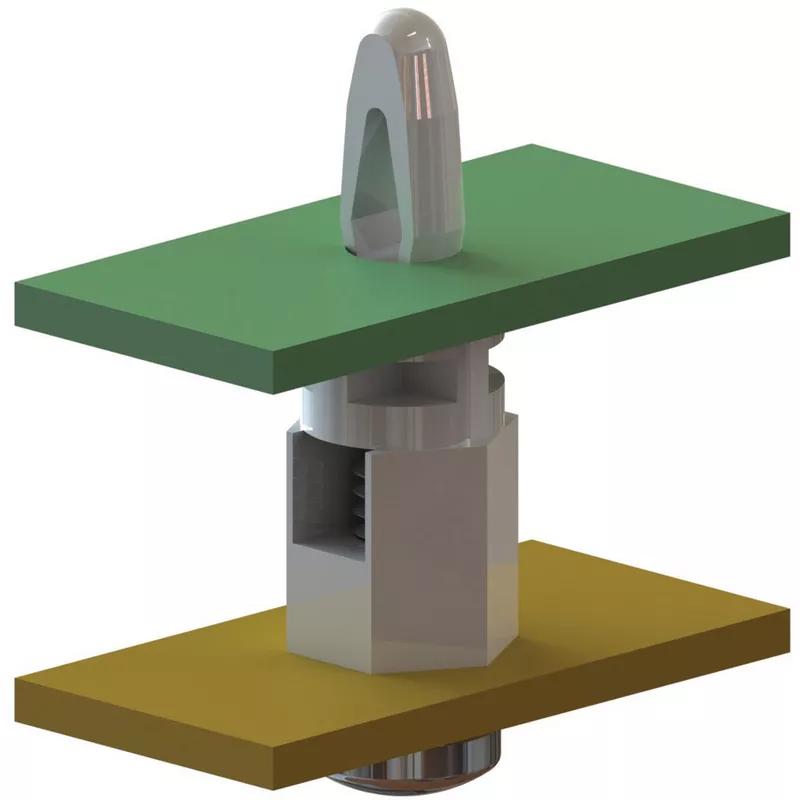

This non-locking bayonet nose spacer has a ribbed body and a bottom female thread for screwing into a base board or panel. This item is manufactured with material rated UL94 V-2
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 4,8433 |
| 5000 - 9999 | R 4,4794 |
| 10000 + | R 4,2553 |
Useful Information

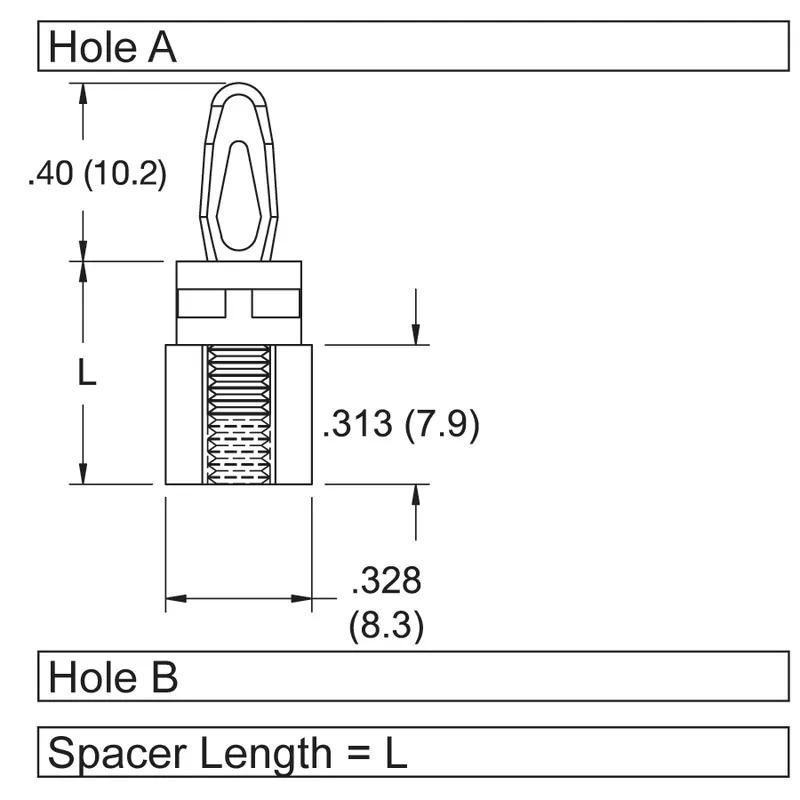

Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Hole A Fix Type | Non-Locking Fix |
| Hole B Fix Type | Female Thread Fix |
| Compatible Thread Sizes (All) | #6-32 |
| Body Diameter | 7.1 mm |
| Hole Diameter A | 4.0 mm |
| Spacer Length | 25.4 mm |
| Thread Length | 7.9 mm |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Locking Head Height A | 10.2 mm |
| Commodity Code | 3926909790 |
