Masked Eye Bolts

In production

An Eye Bolt is a type of bolt with a loop at one end and is typically used with a hook or other hanging systems. They are commonly used as a hanging solution during powder coating, painting, shot blasting and other surface treatment processes. To ensure longevity and optimal performance, it is imperative that the bolts benefit from a form of protection to avoid ingress and contamination.

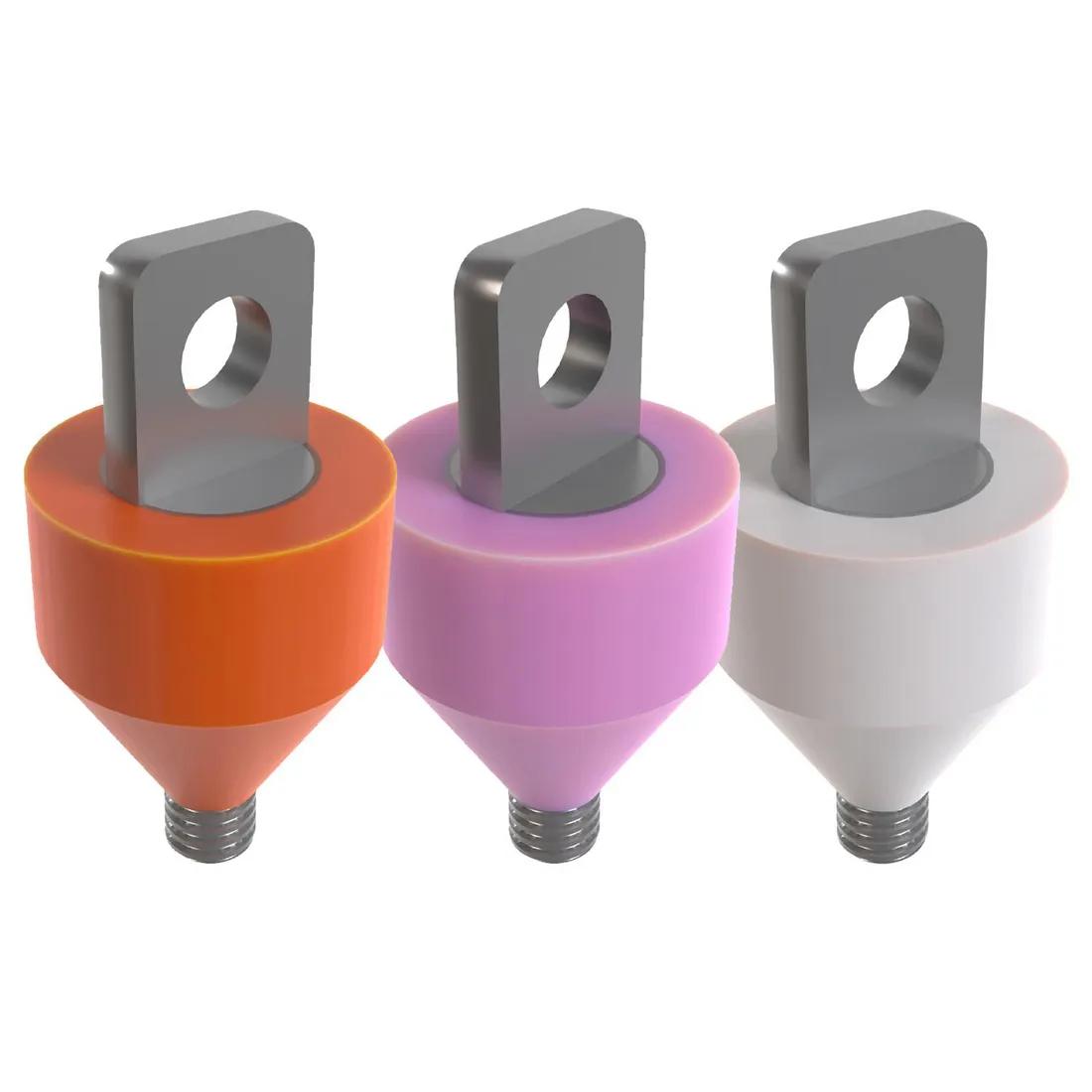

To achieved thanks to our range of Masked Eye Bolts made from Steel that have a choice of colourful silicone coatings. The silicone coating will protect the eye bolt during use, and extend its life cycle. This makes our range a highly economical and sustainable choice for your application.

Material: Steel with Silicone
Colours: Brown, Green, Orange, Pink, Purple, Red, Transparent, White and Yellow
Maximum Operating Temperature: 250C

Series Code :SRF0062

Print page

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

9 results

Sort by

None

Product SKUs information

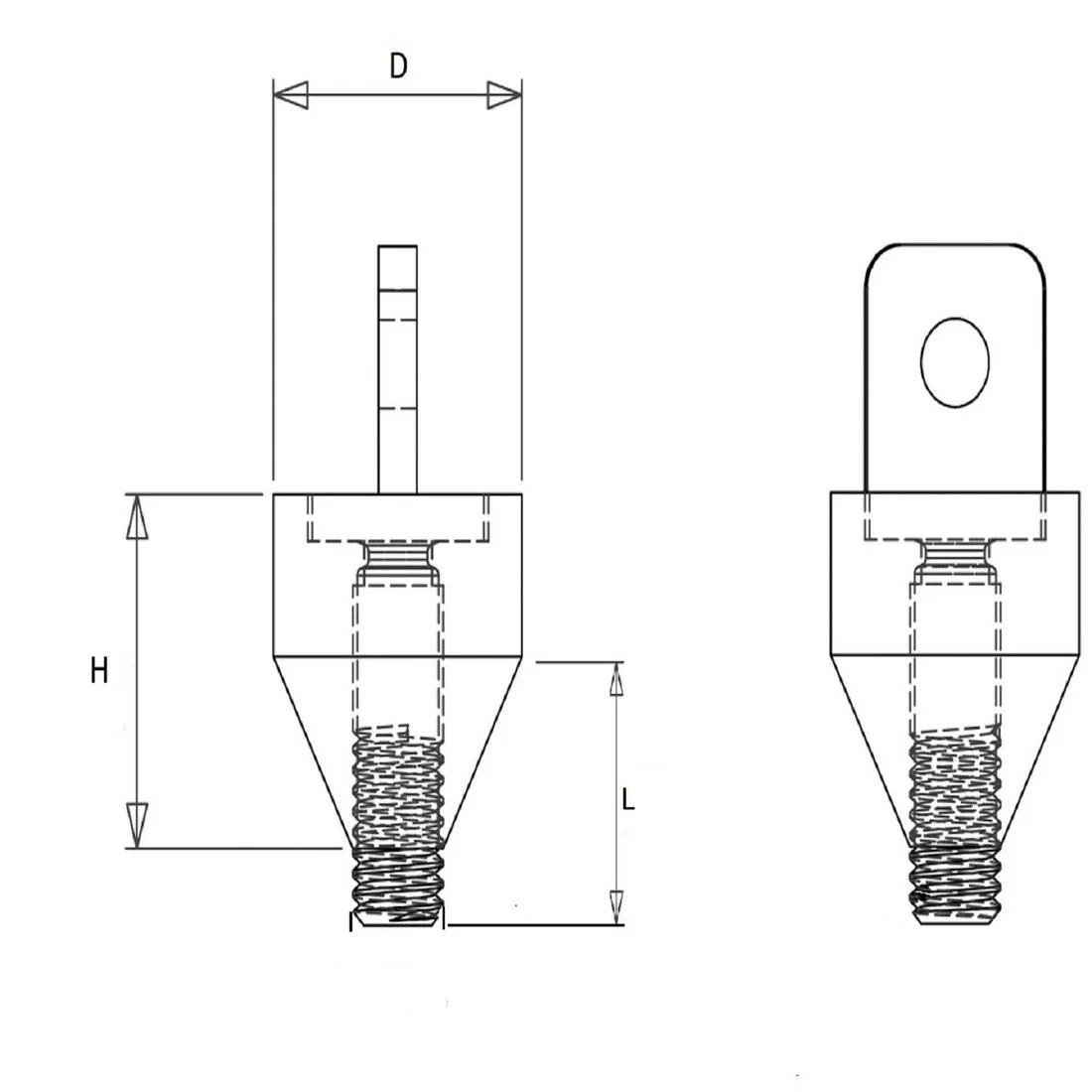

Price range	Availability	D	FH	Colour	Material	Compatible Thread Sizes (All)	CH
R 13,0717 - R 33,2338	Request the lead time here	0.433 in 11.0 mm	0.102 in 2.6 mm	Transparent	Silicone	M4	0.157 in 4.0 mm

R 38,9689 - R 99,2127	Request the lead time here	0.945 in 24.0 mm	0.268 in 6.8 mm	Red	Silicone	M16	0.63 in 16.0 mm

R 18,0255 - R 45,8431	Request the lead time here	0.433 in 11.0 mm	0.15 in 3.8 mm	Orange	Silicone	M5	0.197 in 5.0 mm

R 37,309 - R 94,8141	Request the lead time here	0.906 in 23.0 mm	0.228 in 5.8 mm	Purple	Silicone	M14	0.551 in 14.0 mm

R 11,4118 - R 29,0307	Request the lead time here	0.394 in 10.0 mm	0.102 in 2.6 mm	Pink	Silicone	M3	0.118 in 3.0 mm

R 20,684 - R 52,7831	Request the lead time here	0.551 in 14.0 mm	0.161 in 4.1 mm	Yellow	Silicone	M6	0.236 in 6.0 mm

R 51,0421 - R 130,0029	Request the lead time here	1.102 in 28.0 mm	0.248 in 6.3 mm	Brown	Silicone	M20	0.787 in 20.0 mm

R 24,315 - R 62,069	Request the lead time here	0.709 in 18.0 mm	0.185 in 4.7 mm	White	Silicone	M8	0.315 in 8.0 mm

R 35,6621 - R 90,4155	Request the lead time here	0.866 in 22.0 mm	0.228 in 5.8 mm	Green	Silicone	M12	0.472 in 12.0 mm
