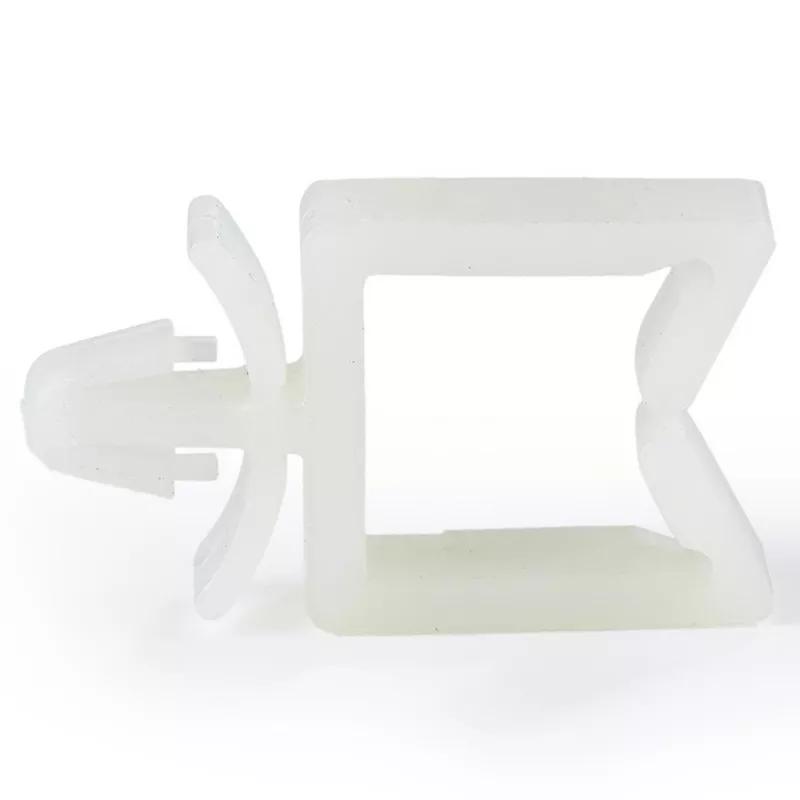

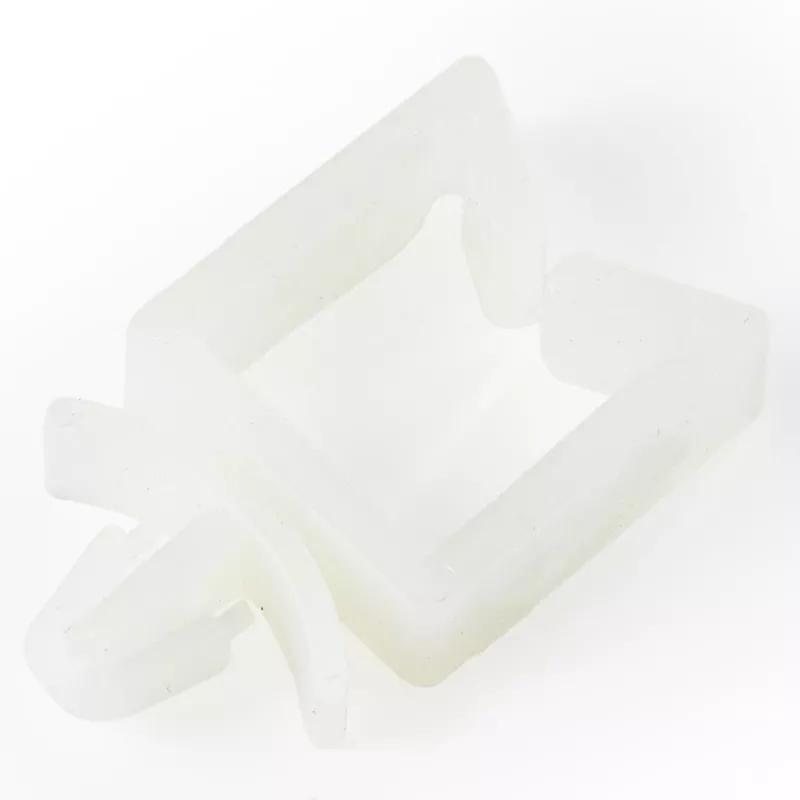

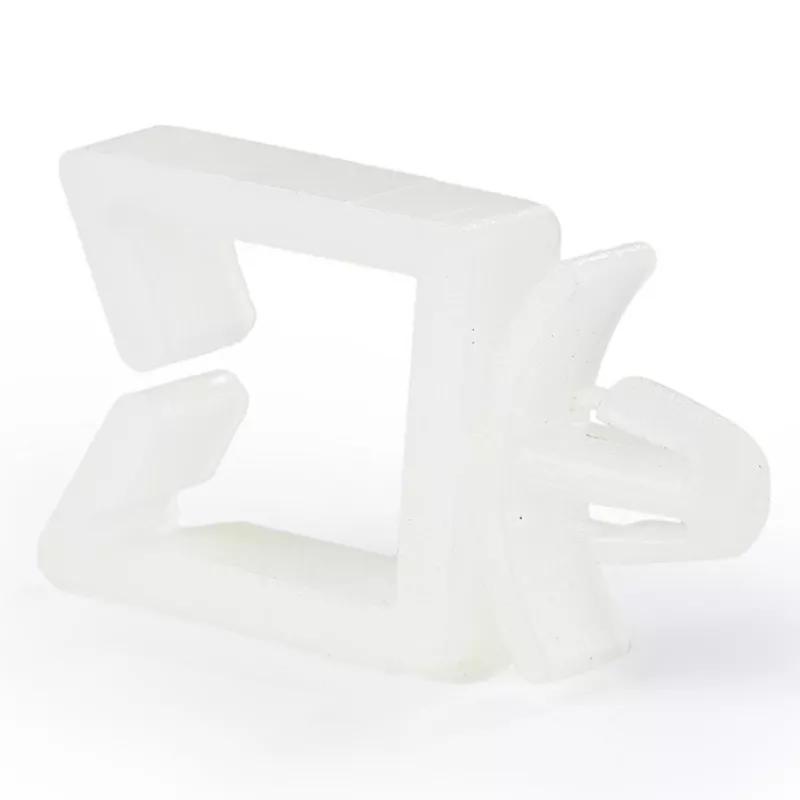

Cable Grommet Push In 9.7 mm 11.1 mm PA
Non-locking wire saddle gathers and routes wires to keep them clear of other sensitive components and provide a clean build for electrical and electronic applications.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 2,475 |
| 5000 - 9999 | R 2,2844 |
| 10000 - 24999 | R 2,164 |
| 25000 + | R 2,0439 |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Fitting Style | Push In |
| Material | PA |
| Saddle Type | Rectangular |
| Compatible Hole Diameter | 4.7 mm |
| Depth | 5.6 mm |
| Height | 18 mm |
| Inside Height | 9.7 mm |
| Inside Width | 11.1 mm |
| Maximum Panel Thickness | 1.6 mm |
| Overall Width | 15.4 mm |
| Panel Thickness Range | 1.6 mm |
| Full Material | Polyamide |
| Material Flammability Standard | UL94 V-2 |
| UL/CSA Description | UL E71558 |
