PCB Support Pillars - Stud Fitting
In production

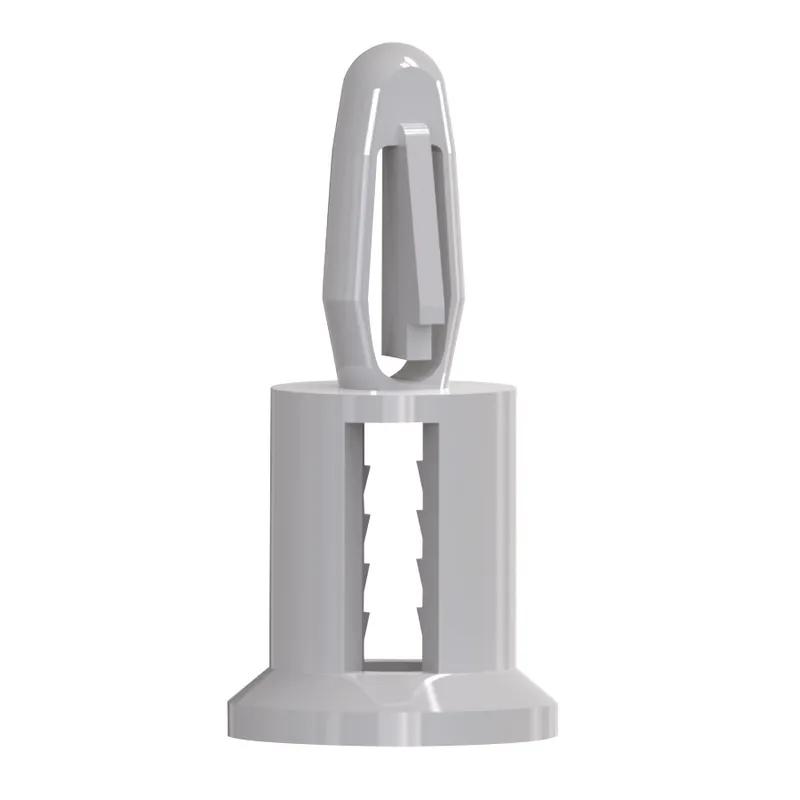

These PCB Support Pillars, also called PCB Pillar Support or simply PCB Supports, are installed to the bottom board by pushing them on to a M4 (#8) screw or stud.
The PCB Stud features teeth inside the spacer that grip on to the threads. The support pillars have a top fixing that is a locking bayonet nose.
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Price range | Availability | Hole Diameter A | Panel Thickness A Range | Compatible Thread Sizes (All) | Spacer Length | View | |
|---|---|---|---|---|---|---|---|
| R 2,5261 - R 3,7337 | Request the lead time here |
4.0 mm
|
|
#8,M4
|
14.0 mm
|
||
| R 2,5959 - R 3,8183 | Request the lead time here |
4.0 mm
|
|
#8,M4
|
16.0 mm
|
||
| R 2,3168 - R 3,3956 | Request the lead time here |
4.0 mm
|
|
#8,M4
|
10.0 mm
|
||
| R 3,2755 - R 3,7515 | Request the lead time here |
4.0 mm
|
|
#8,M4
|
18.0 mm
|
||
| R 2,4982 - R 3,6633 | Request the lead time here |
4.0 mm
|
|
#8,M4
|
12.0 mm
|
||
| R 2,7076 - R 3,9592 | Request the lead time here |
4.0 mm
|
|
#8,M4
|
20.0 mm
|
||
Threaded Screw Support 14.0 mm #8,M4 Female Thread Fix
- Price Range
- R 3,7337 - R 2,5261
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Female Thread Fix -
Compatible Thread Sizes (All)
#8,M4 -
Body Diameter
7.1 mm
