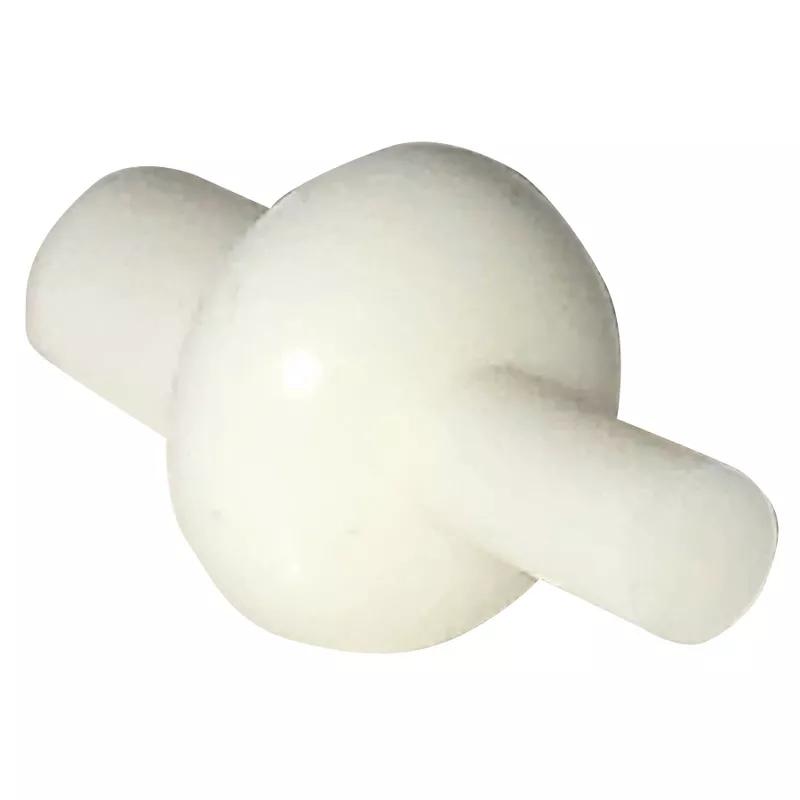

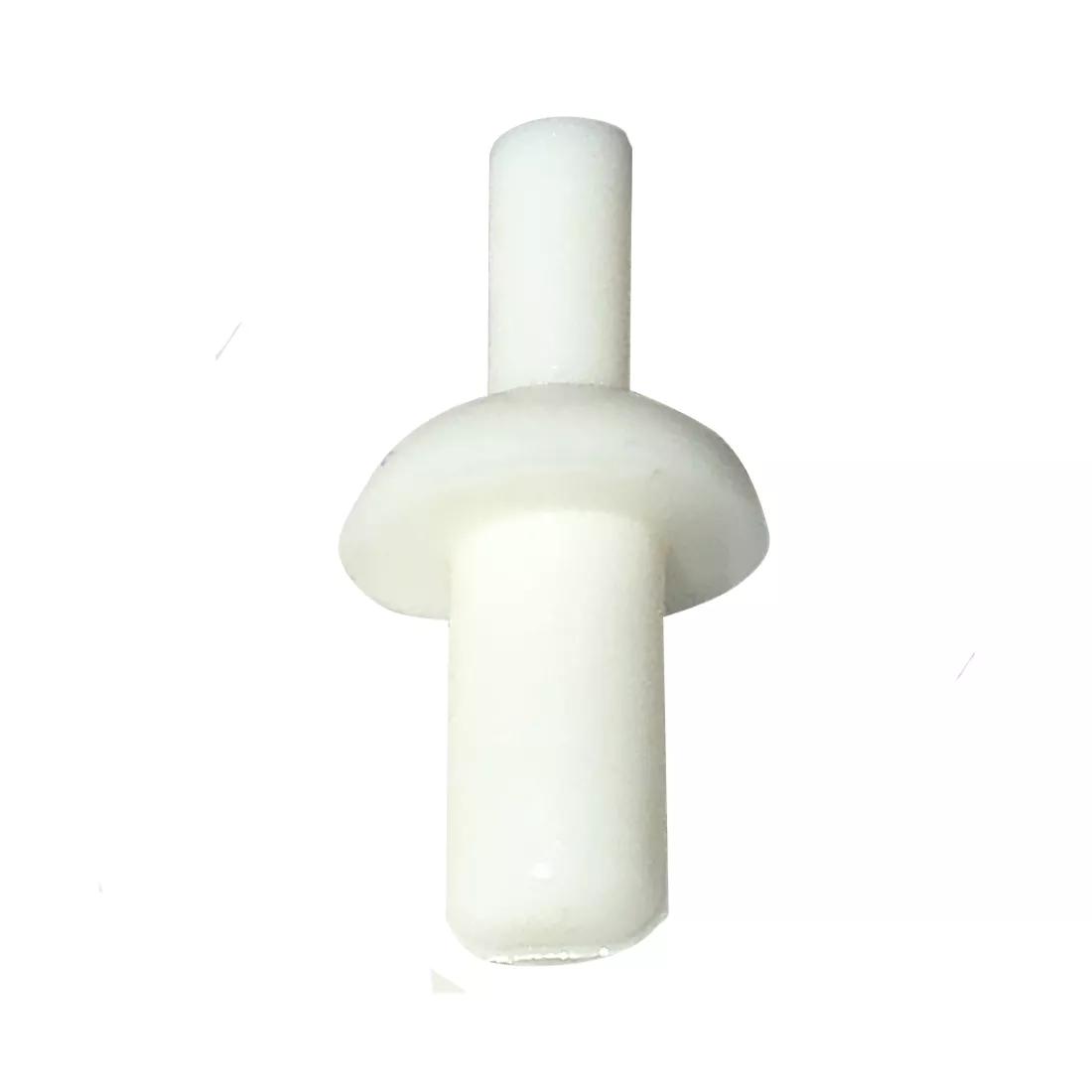

Push-In Rivet 5.1 mm 5.1 mm 6.1 mm Nylon White
Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 2,2543 |
| 5000 - 9999 | R 1,7612 |
| 10000 - 24999 | R 1,5648 |
| 25000 + | R 1,4226 |
Useful Information
Documents
Specifications
Imperial
Metric

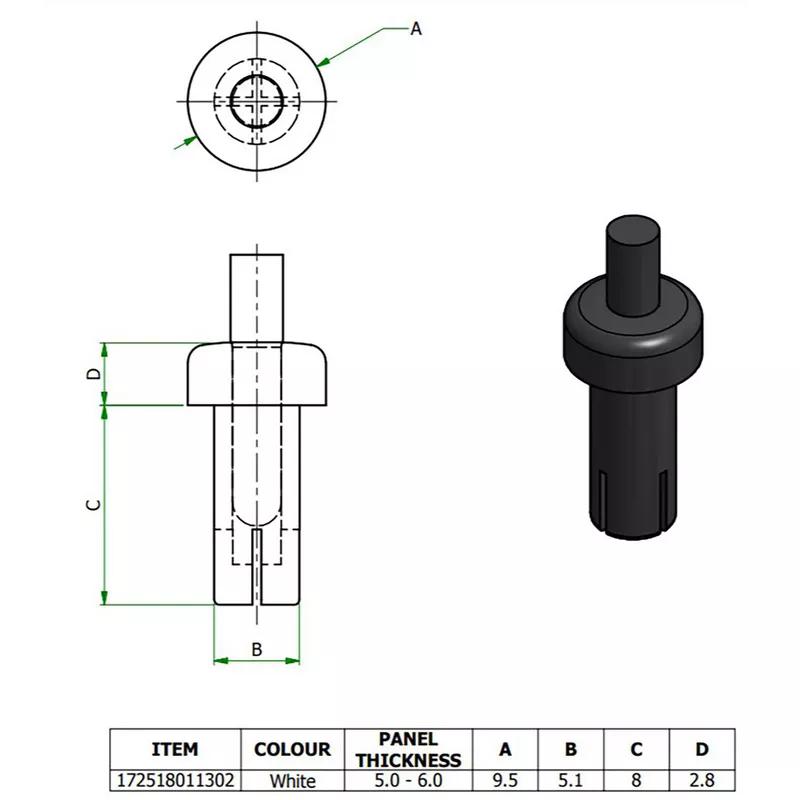

| Anchor Length | 8.1 mm |
|---|---|
| Compatible Hole Diameter | 5.1 mm |
| Compatible Panel Thickness Range | 5.1 - 6.1 mm |
| Head Diameter | 9.4 mm |
| Head Height | 2.8 mm |
| Rivet Type | Spreading |
| Rivet Fitting Style | Push-In |
| Colour | White |
| Full Material | Nylon 6 |
| Commodity Code | 3926909790 |
Product PPR-5080W replaces:
Push-In Rivet 5.1 mm 5.0 mm 6.0 mm Nylon White
Item code:
172518011302
