Snap Rivet Locking Support 9.5 mm (L) PA

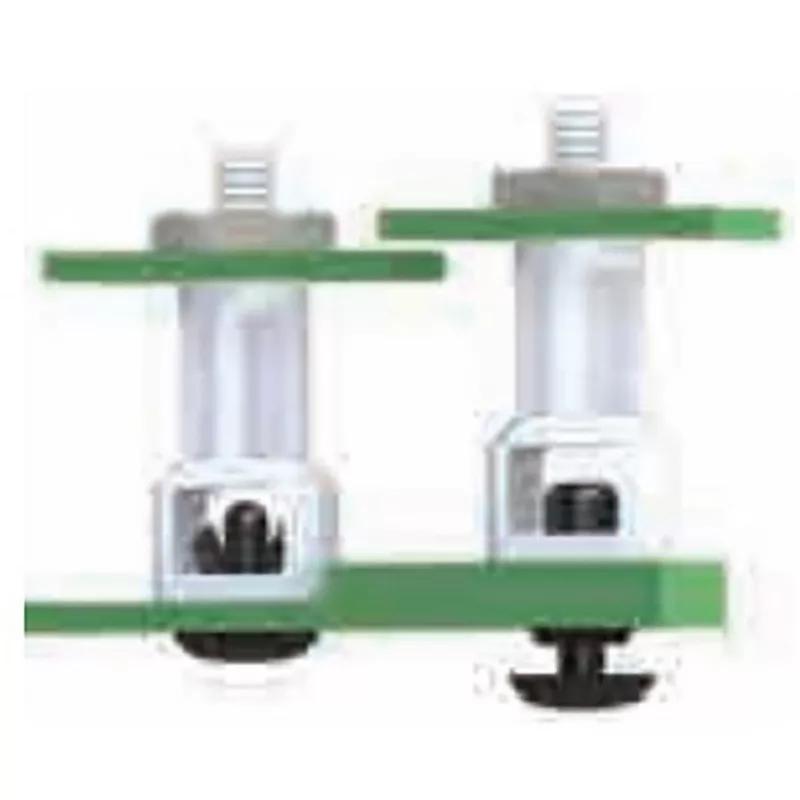

This studded circuit board support has a ribbed body and a ready to use screw thread top for fixing. It has a snap rivet mounting hole at the bottom that pairs perfectly with our SR snap rivet range. It is manufactured of UL94 V-2 rated material
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 3,8594 |
| 5000 - 9999 | R 3,4735 |
| 10000 + | R 3,1262 |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Hole A Fix Type | Male Thread Fix |
| Hole B Fix Type | Hole Fix |
| Panel Thickness A Range | 1.6 mm |
| Panel Thickness B Range | 0.7 - 1.6 mm |
| Spacer Length | 9.5 mm |
| Full Material | Polyamide 66 |
| Material Flammability Standard | UL94 V-2 |
| Hole Diameter B | 4.1 mm |
| Commodity Code | 3926909790 |
