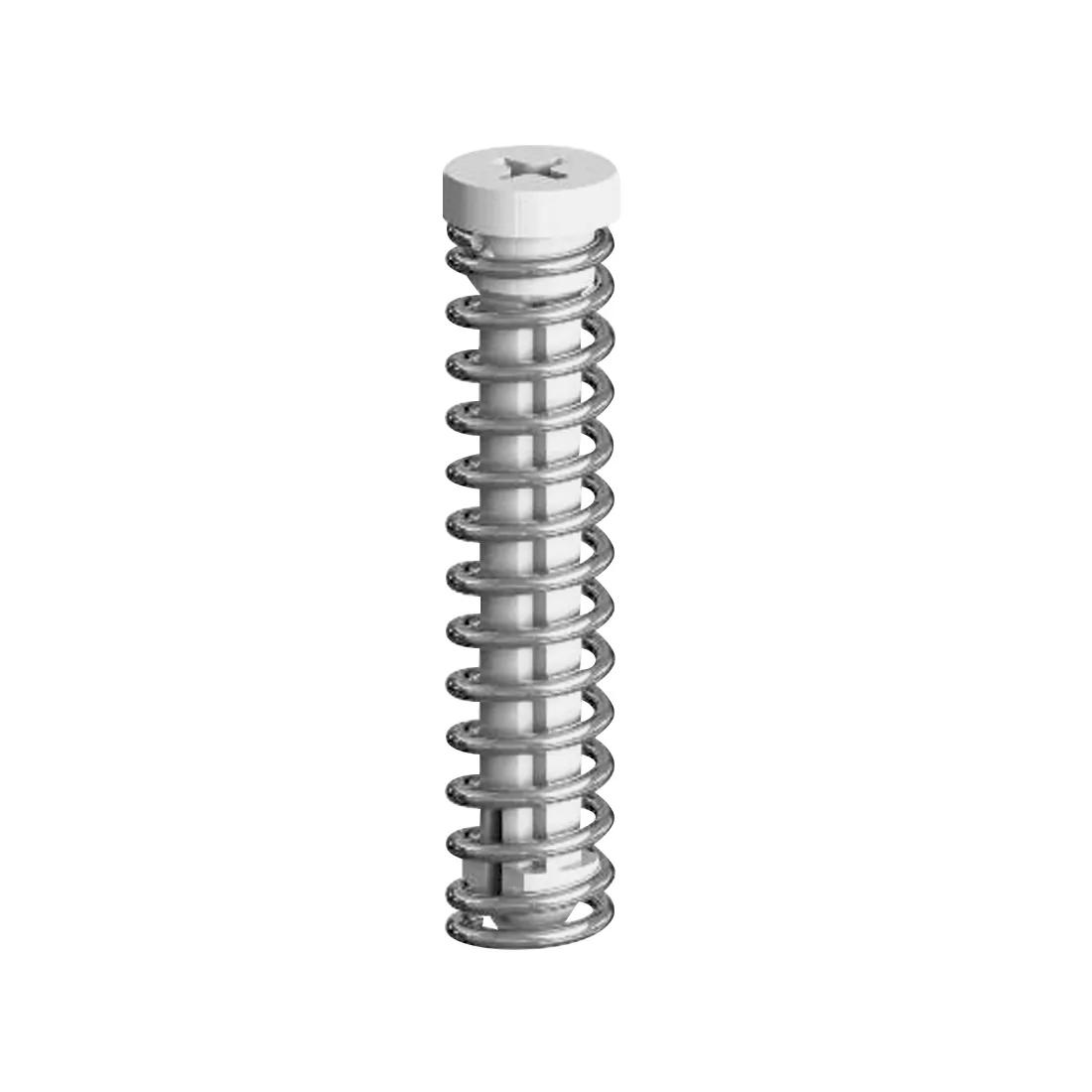

Heat Sink - Panel Thickness - 9.1 mm | 0.358 in; PA;Natural
Fastens a heat sink to a processor chip on a PCB. The metal spring provides continuous pressure to the heat sink until thermal adhesive cures. Can be installed by using a cross head screwdriver.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.3767 |
| 5000 + | $0.3579 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 20.9 mm |
|---|---|
| Head Height | 2.0 mm |
| Head Diameter | 4.6 mm |
| Hole Size | 3.1 mm |
| Panel Thickness | 9.1 mm |
| Minimum Fixed Panel Hole Diameter | 3.1 mm |
| Maximum Fixed Panel Hole Diameter | 3.5 mm |
| Colour | Natural |
| Full Material | Polyamide 66 |
| Spring Material | Stainless Steel |
| Material Flammability Standard | UL94 V-2 |
| Style | 2 |
| Rivet Head Shape | Flat |
| Rivet Type | Heat Sink |
| Rivet Fitting Style | Push-In |
