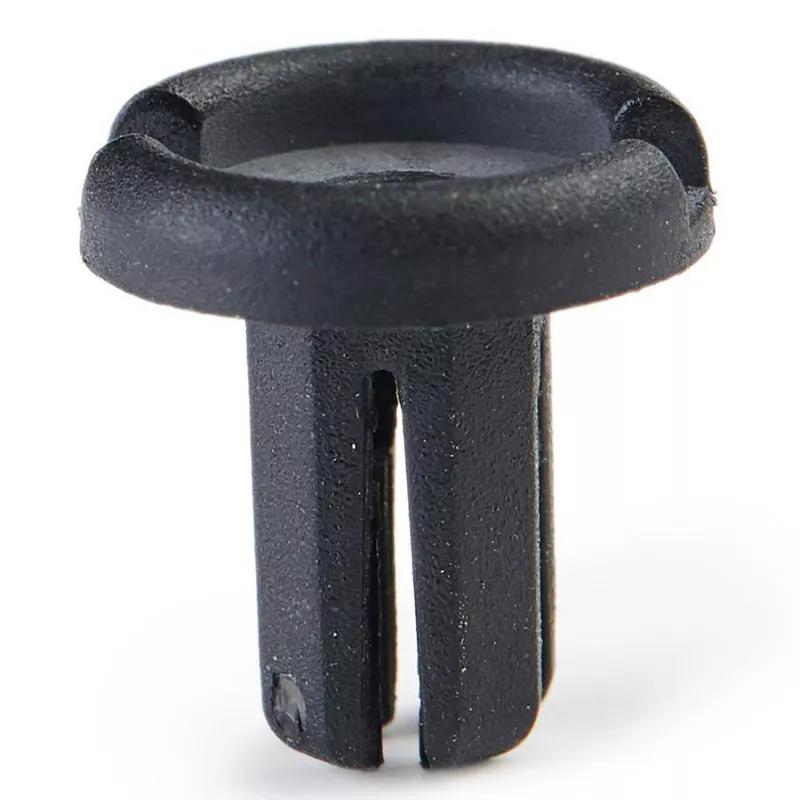

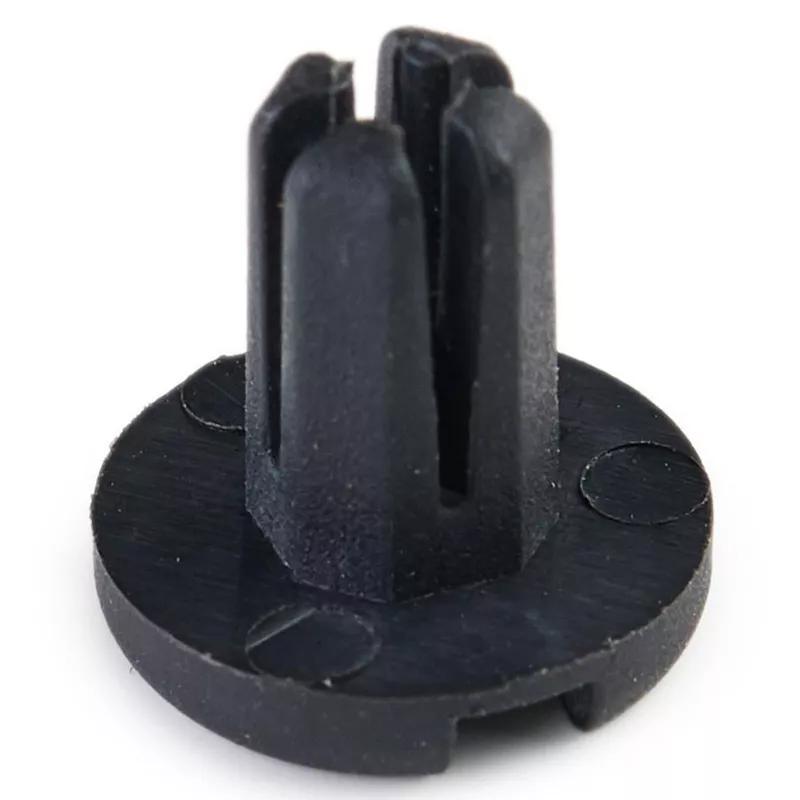

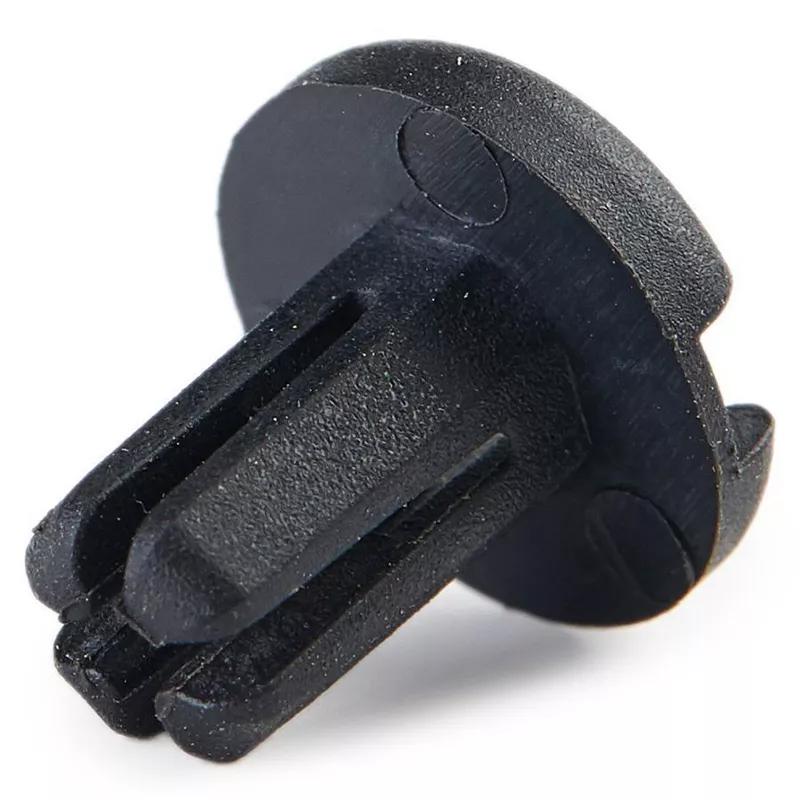

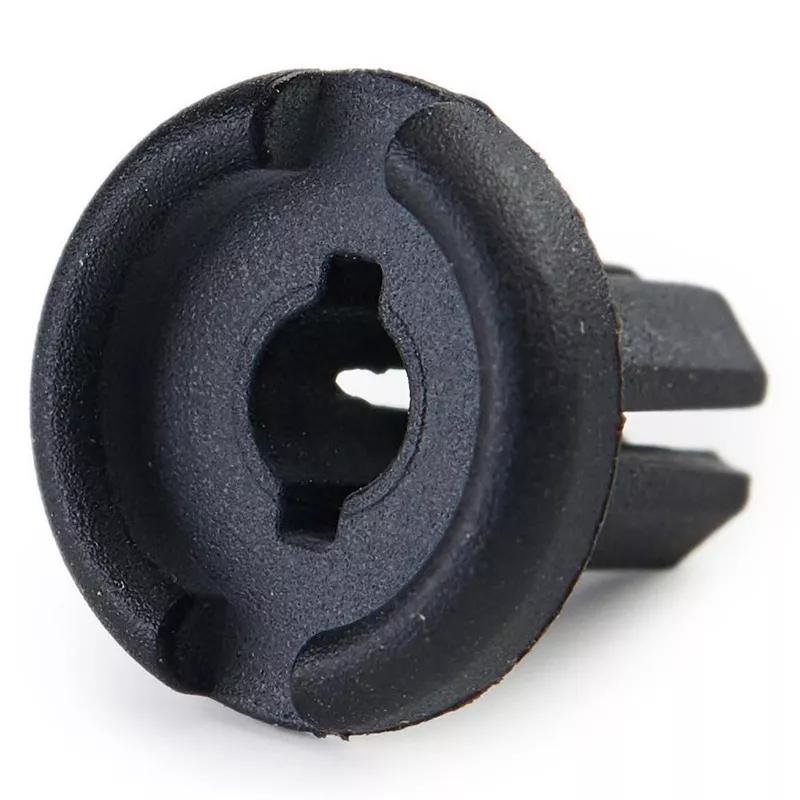

Releasable Push-In Rivet - Hole Diameter B 4.5 mm | 0.177 in; Panel Thickness Range 1.5 - 3.5 mm | 0.059 - 0.138 in; Black; Nylon

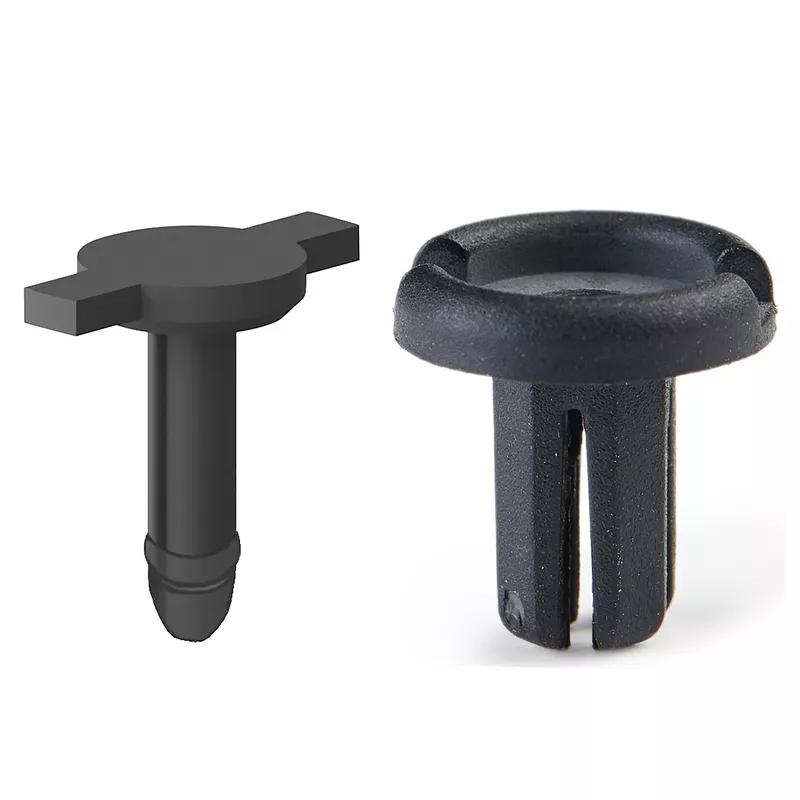

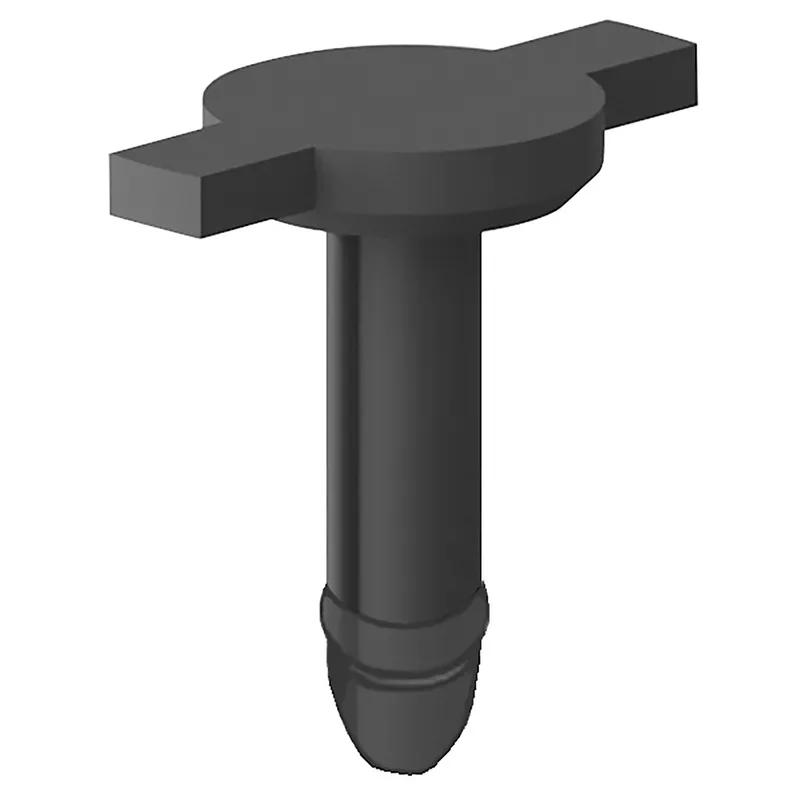

Can be used in either a round or square hole. Square hole mounting is for anti-rotation applications. The part featues a pin and grommet that are supplied unassembled. Once assembled, the pin is removable by pulling on the side tabs.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.4373 |
| 5000 + | $0.4155 |
Useful Information
Documents
Specifications
Imperial
Metric

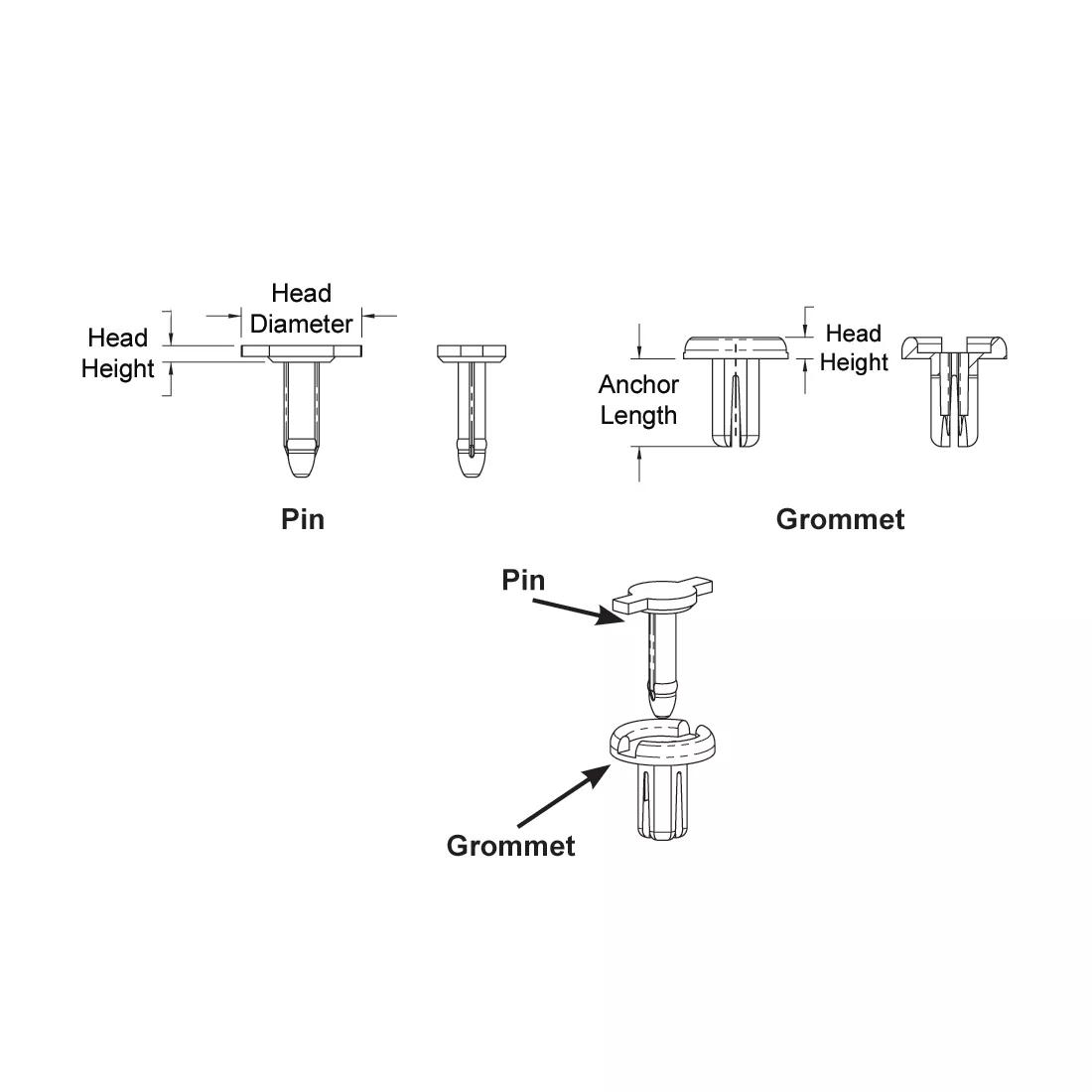

| Mounting Hole Shape | Round/Square |
|---|---|
| Hole Diameter B | 4.5 mm |
| Minimum Hole Diameter | 4.8 mm |
| Maximum Hole Diameter | 5.3 mm |
| Panel Thickness Range | 1.5 - 3.5 mm |
| Anchor Length | 8.0 mm |
| Head Diameter | 11.0 mm |
| Head Height | 2.0 mm |
| Pin Head Diameter | 11.0 mm |
| Pin Head Height | 1.5 mm |
| Pre-Assembled Rivet | No |
| Colour | Black |
| Full Material | Nylon 6/66 |
| Material Flammability Standard | UL94 V-0 |
