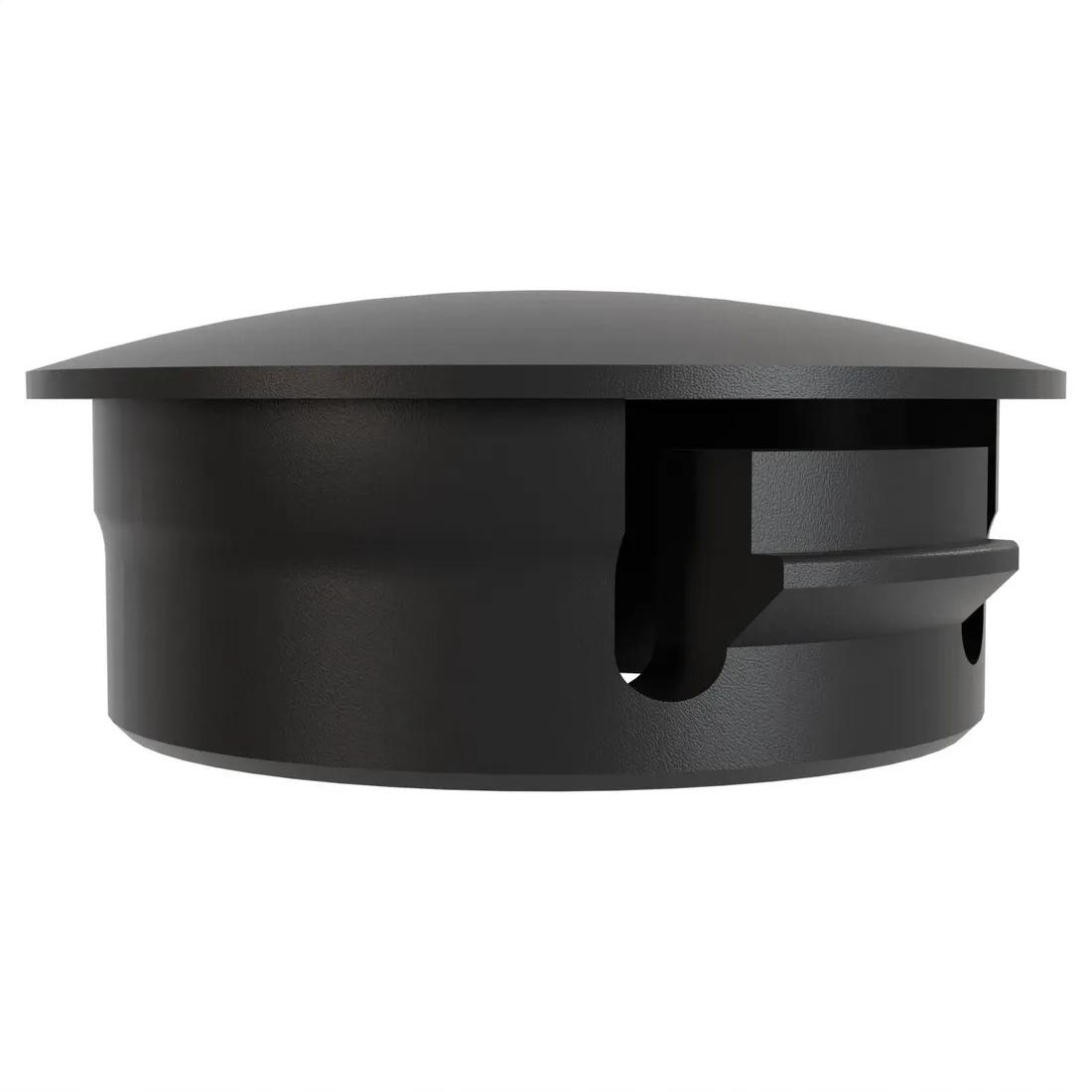

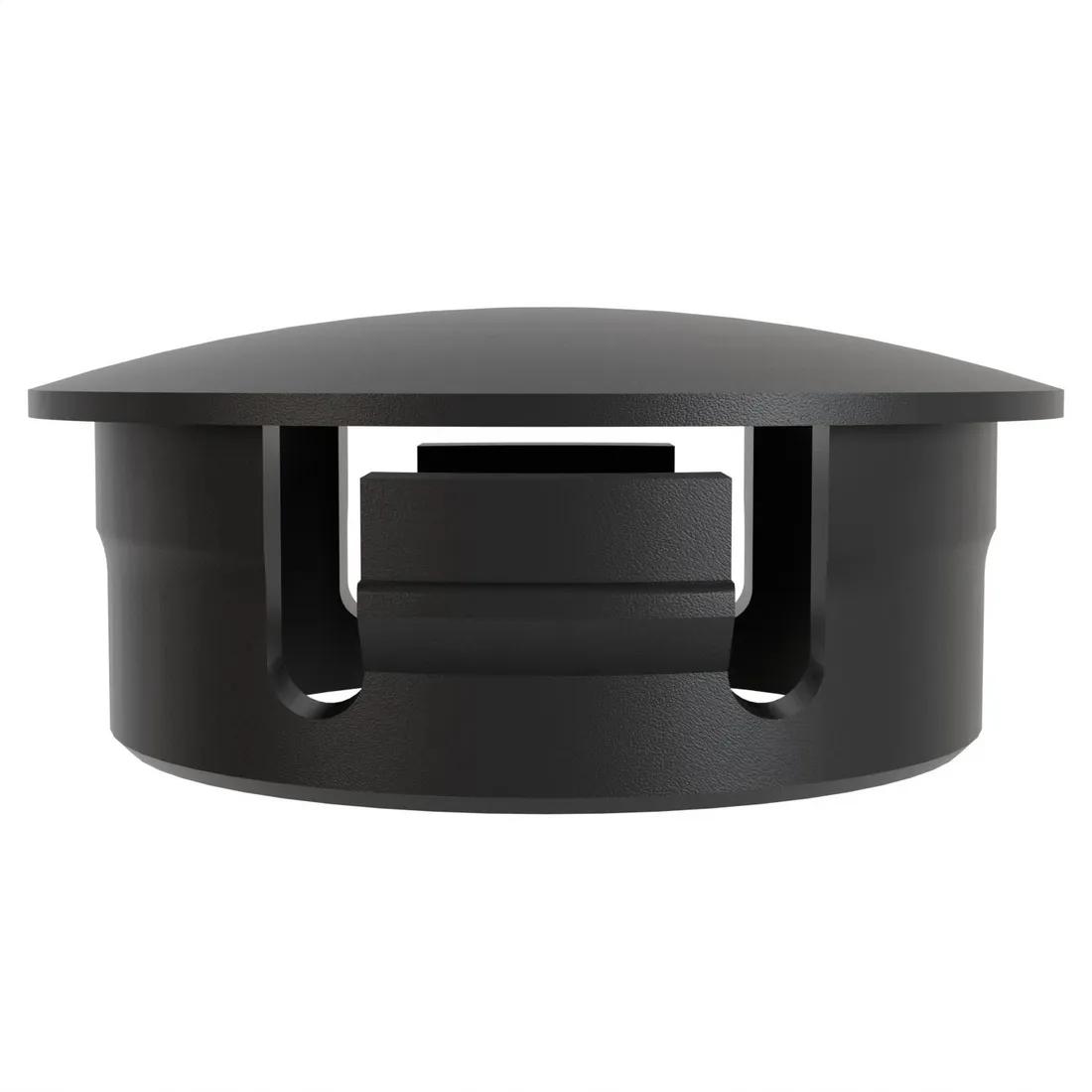

Blanking Plug - Compatible Hole Diameter 11.9 mm | 0.468 in ; Overall Diameter 13.5 mm | .531 in ; Snap Fit ; PA ; Black
This Solid Locking Plug is used to close off extra chassis holes, wire outlets, and access holes. It is dust, dirt, moisture resistant, corrosion, and vibration resistant. Designed to fit snugly with a finger and may be withdrawn and replaced as needed. Black, made from PA and UL94 V-2 rated.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | $0.1508 |
| 5000 - 9999 | $0.1356 |
| 10000 - 24999 | $0.1221 |
| 25000 + | $0.116 |
Useful Information
Documents
Specifications
Imperial
Metric
| Full Material | Polyamide 66 |
|---|---|
| Colour | Black |
| Material Flammability Standard | UL94 V-2 |
| Fitting Style | Snap Fit |
| Hole Type | Round Hole |
| Head Style | Dome |
| Overall Diameter | 0.531 in |
| Overall Height | 0.252 in |
| Compatible Hole Diameter | 0.469 in |
| Compatible Panel Thickness Range | 0.063 in |
