Push-In Rivets - Tough Rivet - Line Drawing

Push-In Rivets - Tough Rivet

In stock

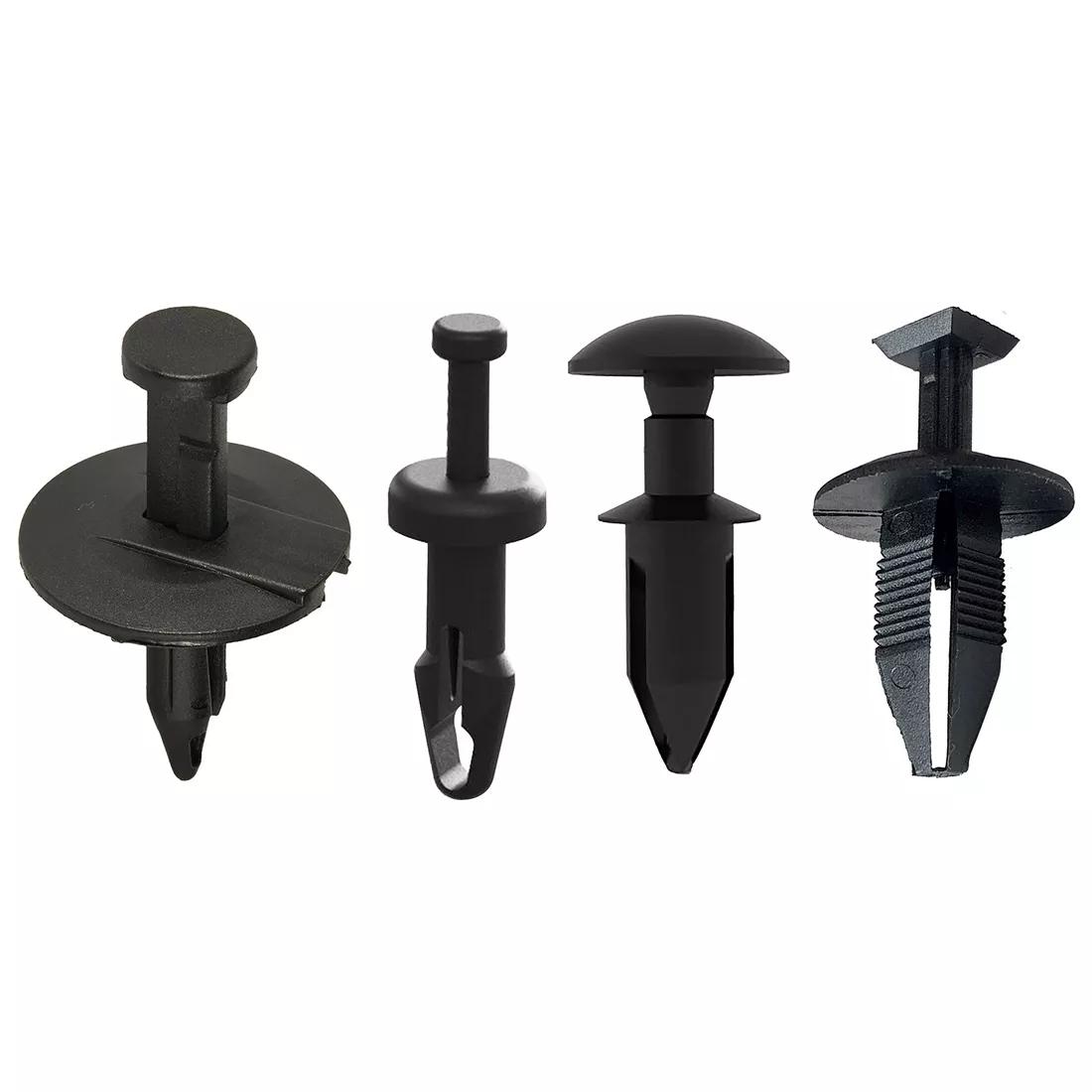

Tough Rivets have a quick and easy push-fit design. They have a one-piece design with a pre-driven pin that allows the rivet to be quickly installed by hand, or with automatic equipment. They can be easily removed by pulling the pin from the grommet.

Our range of Tough Rivets are suitable for applications requiring a push in, front-mounted (blind-side fixing) fastener, which can be removed and reused. The rivets provide that and more! They also benefit from strong vibration resistance and are a solid choice for for lightweight applications.

The rivet has a robust design that stays tough in its structure, but still provide a clean and tidy finish. These rivets are strong, reliable and are a highly economical choice.

Material: Nylon 6/6
UL94 HB and UL94 V2 Flame Rated options
Colour: Black

Series Code :SR1912

Print page

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

28 results

Sort by

None

Product SKUs information
Price range	Availability	Head Height	Head Diameter	Compatible Panel Thickness Range	Compatible Hole Diameter Range
R 14,8239 - R 14,8239	Request the lead time here	0.098 in 2.5 mm	1 in 25.4 mm	0.098 - 0.35 in 2.5 - 8.9 mm	0.248 in 6.3 mm

R 14,8239 - R 14,8239	Request the lead time here	0.094 in 2.4 mm	0.984 in 25.0 mm	0.035 - 0.189 in 0.9 - 4.8 mm	0.374 in 9.5 mm

R 14,8239 - R 27,4249	Request the lead time here	0.098 in 2.5 mm	1 in 25.4 mm	0.472 - 0.591 in 12.0 - 15.0 mm	0.276 - 0.276 in 7 - 7.0 mm

R 12,2405 - R 12,2405	Request the lead time here	0.118 in 3.0 mm	0.591 in 15.0 mm	0.472 - 0.63 in 12.0 - 16.0 mm	0.315 - 0.315 in 8 - 8.0 mm

R 17,392 - R 17,392	Request the lead time here	0.146 in 3.7 mm	0.787 in 20.0 mm	0.236 - 0.394 in 6.0 - 10.0 mm	0.394 - 0.394 in 10 - 10.0 mm

R 11,3486 - R 11,3486	Request the lead time here	0.106 in 2.7 mm	0.591 in 15.0 mm	0.098 - 0.35 in 2.5 - 8.9 mm	0.248 in 6.3 mm

R 8,9958 - R 8,9958	Request the lead time here	0.106 in 2.7 mm	0.787 in 20.0 mm	0.118 - 0.315 in 3.0 - 8.0 mm	0.315 - 0.315 in 8 - 8.0 mm

R 2,4757 - R 3,4138	Request the lead time here	0.079 in 2.0 mm	0.587 in 14.9 mm	0.098 - 0.315 in 2.5 - 8.0 mm	0.252 - 0.276 in 6.4 - 7 mm

R 11,3486 - R 11,3486	Request the lead time here	0.102 in 2.6 mm	0.63 in 16.0 mm	0.118 - 0.276 in 3.0 - 7.0 mm	0.354 - 0.354 in 9 - 9.0 mm

R 25,1577 - R 25,1577	Request the lead time here	0.098 in 2.5 mm	1.181 in 30.0 mm	1.142 - 1.22 in 29.0 - 31.0 mm	0.453 in 11.5 mm

R 2,0516 - R 2,9063	Request the lead time here	0.059 in 1.5 mm	0.217 in 5.5 mm	0.106 - 0.13 in 2.7 - 3.3 mm	0.122 - 0.128 in 3.1 - 3.3 mm

R 2,0561 - R 2,9924	Request the lead time here	0.059 in 1.5 mm	0.189 in 4.8 mm	0.161 - 0.181 in 4.1 - 4.6 mm	0.098 - 0.103 in 2.5 - 2.6 mm

R 1,6146 - R 2,5373	Request the lead time here	0.043 in 1.1 mm	0.283 in 7.2 mm	0.059 - 0.181 in 1.5 - 4.6 mm	0.193 - 0.205 in 4.9 - 5.2 mm

R 4,0006 - R 5,4359	847 In stock - Delivery conditions may apply, visit our FAQs	0.106 in 2.7 mm	0.587 in 14.9 mm	0.118 - 0.315 in 3.0 - 8.0 mm	0.315 - 0.325 in 8.0 - 8.3 mm

R 11,8099 - R 11,8099	Request the lead time here	0.098 in 2.5 mm	0.709 in 18.0 mm	0.157 - 0.299 in 4.0 - 7.6 mm	0.248 in 6.3 mm

R 3,1524 - R 4,3211	Request the lead time here	0.098 in 2.5 mm	0.984 in 25.0 mm	0.098 - 0.35 in 2.5 - 8.9 mm	0.248 - 0.276 in 6.3 - 7 mm

R 12,6557 - R 12,6557	Request the lead time here	0.079 in 2.0 mm	0.685 in 17.4 mm	0.059 - 0.299 in 1.5 - 7.6 mm	0.248 in 6.3 mm

R 2,0361 - R 2,9063	Request the lead time here	0.059 in 1.5 mm	0.217 in 5.5 mm	0.079 - 0.106 in 2.0 - 2.7 mm	0.106 - 0.112 in 2.7 - 2.8 mm

R 2,0698 - R 3,0216	Request the lead time here	0.059 in 1.5 mm	0.217 in 5.5 mm	0.24 - 0.264 in 6.1 - 6.7 mm	0.122 - 0.128 in 3.1 - 3.3 mm

R 13,117 - R 13,117	Request the lead time here	0.079 in 2.0 mm	0.591 in 15.0 mm	0.098 - 0.35 in 2.5 - 8.9 mm	0.256 in 6.5 mm
