Continuous Hinges - Metal

In production

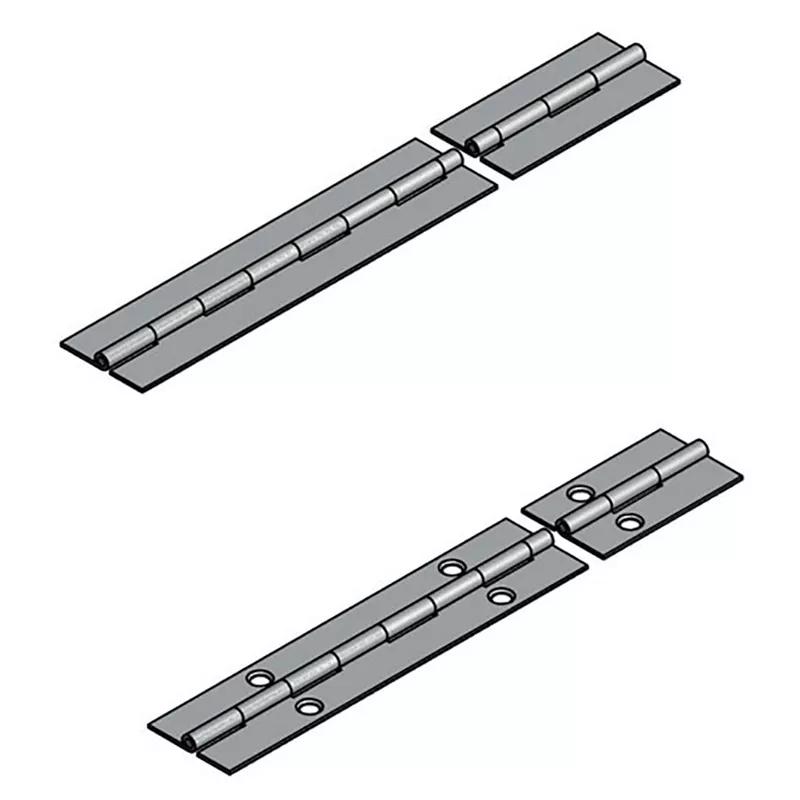

Continuous hinges are available in a range of sizes to suit your application needs. Starting with 0.9mm and 1.2mm thick hinges which offer a lighter duty continuous hinge. They are sold in backs of 2 x 1020mm lengths and are available both drilled and undrilled. They can be riveted, screwed or welded into position and are ideal for lightweight furniture, cabinet/enclosures, and sheet metal fabrication. The drilled type has holes to suit countersunk No.4 screws for the 0.9mm version and No.6 for the 1.2mm version. 1.6mm and 2mm hinges offer a more medium duty continuous hinge. They are sold in packs of 2 x 1016mm lengths and suit a wide range of commercial and engineering applications. The drilled type has holes to suit countersunk no.8 screws; this applies to both 1.6 and 2mm types

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
16 results
Product SKUs information
Item Code Price range Availability Leaf Thickness Overall Length Material Hinge Type Overall Width View
$45.3643 - $50.2652 Request the lead time here
1.2 mm
1016.0 mm
Stainless Steel
Light Duty
32.0 mm
$149.4591 - $165.6058 Request the lead time here
2.0 mm
1016.0 mm
Stainless Steel
Undrilled Hinge
64.0 mm
$14.8514 - $16.4558 Request the lead time here
1.2 mm
1016.0 mm
Steel
Drilled Hinge
32.0 mm
$55.5253 - $61.5239 Request the lead time here
1.2 mm
1016.0 mm
Stainless Steel
Drilled Hinge
38.0 mm
$14.8514 - $16.4558 Request the lead time here
1.2 mm
1016.0 mm
Steel
Undrilled Hinge
32.0 mm
$54.8152 - $60.737 Request the lead time here
1.2 mm
1016.0 mm
Stainless Steel
Undrilled Hinge
38.0 mm
$157.9079 - $174.9672 Request the lead time here
2.0 mm
1016.0 mm
Stainless Steel
Drilled Hinge
64.0 mm
Request the lead time here
2.0 mm
1016.0 mm
Stainless Steel
Drilled Hinge
51.0 mm
$41.0786 - $45.5165 Request the lead time here
1.2 mm
1016.0 mm
Stainless Steel
Undrilled Hinge
32.0 mm
$15.6615 - $17.3534 Request the lead time here
1.2 mm
1016.0 mm
Steel
Undrilled Hinge
38.0 mm
$41.989 - $46.5252 Request the lead time here
2.0 mm
1016.0 mm
Steel
Drilled Hinge
64.0 mm
493550 $39.6938 - $43.982 Request the lead time here
2.0 mm
1016.0 mm
Steel
Drilled Hinge
51.0 mm
$15.6615 - $17.3534 Request the lead time here
1.2 mm
1016.0 mm
Steel
Drilled Hinge
38.0 mm
$41.989 - $46.5252 Request the lead time here
2.0 mm
1016.0 mm
Steel
Undrilled Hinge
64.0 mm
$39.6938 - $43.982 Request the lead time here
2.0 mm
1016.0 mm
Steel
Undrilled Hinge
51.0 mm
$140.0082 - $155.1338 Request the lead time here
2.0 mm
1016.0 mm
Stainless Steel
Undrilled Hinge
51.0 mm

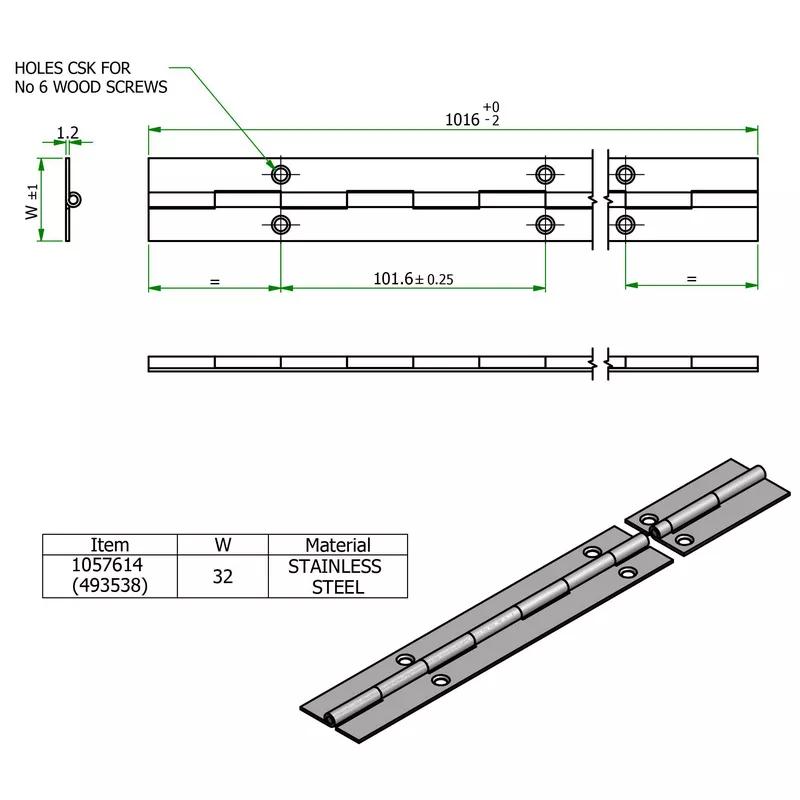

Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 32.0 mm | 1.26 in ; Leaf Thickness - 1.2 mm | 0.047 in; Stainless Steel

493538

Price Range
$50.2652 - $45.3643

Stock Levels
Request the lead time here
Attributes
  • Colour
    Natural
  • Maximum Mounting Hole Size
    2.8 mm
  • Hinge Type
    Light Duty
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Drilled
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 64.0 mm | 2.52 in ; Leaf Thickness - 2.0 mm | 0.079 in; Stainless Steel

493555

Price Range
$165.6058 - $149.4591

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 32.0 mm | 1.26 in ; Leaf Thickness - 1.2 mm | 0.047 in; Steel

493536

Price Range
$16.4558 - $14.8514

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 38.0 mm | 1.496 in ; Leaf Thickness - 1.2 mm | 0.047 in; Stainless Steel

493542

Price Range
$61.5239 - $55.5253

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 32.0 mm | 1.26 in ; Leaf Thickness - 1.2 mm | 0.047 in; Steel

493535

Price Range
$16.4558 - $14.8514

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 38.0 mm | 1.496 in ; Leaf Thickness - 1.2 mm | 0.047 in; Stainless Steel

493541

Price Range
$60.737 - $54.8152

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 64.0 mm | 2.52 in ; Leaf Thickness - 2.0 mm | 0.079 in; Stainless Steel

493556

Price Range
$174.9672 - $157.9079

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 51.0 mm | 2.008 in ; Leaf Thickness - 2.0 mm | 0.079 in; Stainless Steel

493552


Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 32.0 mm | 1.26 in ; Leaf Thickness - 1.2 mm | 0.047 in; Stainless Steel

493537

Price Range
$45.5165 - $41.0786

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 38.0 mm | 1.496 in ; Leaf Thickness - 1.2 mm | 0.047 in; Steel

493539

Price Range
$17.3534 - $15.6615

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 64.0 mm | 2.52 in ; Leaf Thickness - 2.0 mm | 0.079 in; Steel

493554

Price Range
$46.5252 - $41.989

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 51.0 mm | 2.008 in ; Leaf Thickness - 2.0 mm | 0.079 in; Steel

493550

Price Range
$43.982 - $39.6938

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 38.0 mm | 1.496 in ; Leaf Thickness - 1.2 mm | 0.047 in; Steel

493540

Price Range
$17.3534 - $15.6615

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Drilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Countersunk
  • Leaf Thickness
    1.2 mm
  • Overall Length
    1016.0 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 64.0 mm | 2.52 in ; Leaf Thickness - 2.0 mm | 0.079 in; Steel

493553

Price Range
$46.5252 - $41.989

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 51.0 mm | 2.008 in ; Leaf Thickness - 2.0 mm | 0.079 in; Steel

493549

Price Range
$43.982 - $39.6938

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
Piano Hinge - Overall Length - 1016.0 mm | 40 in ; Overall Width - 51.0 mm | 2.008 in ; Leaf Thickness - 2.0 mm | 0.079 in; Stainless Steel

493551

Price Range
$155.1338 - $140.0082

Stock Levels
Request the lead time here
Attributes
  • Hinge Type
    Undrilled Hinge
  • Material
    Stainless Steel
  • Mounting Hole Depression
    Undrilled
  • Leaf Thickness
    2.0 mm
  • Maximum Thickness
    8.5 mm
